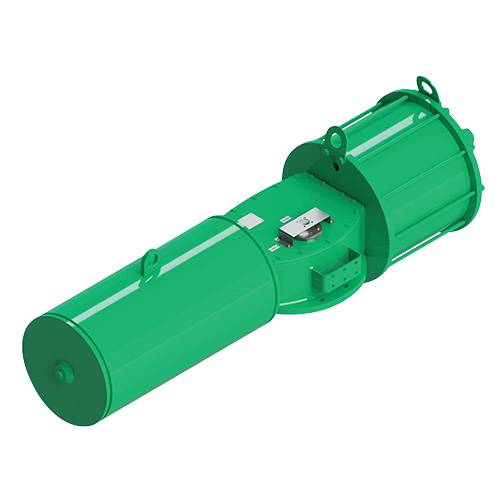

Einfachwirkender pneumatischer Stellantrieb GS Heavy Duty Carbonstahl

  • vorteile
  • eigenschaften
  • werkstoffe

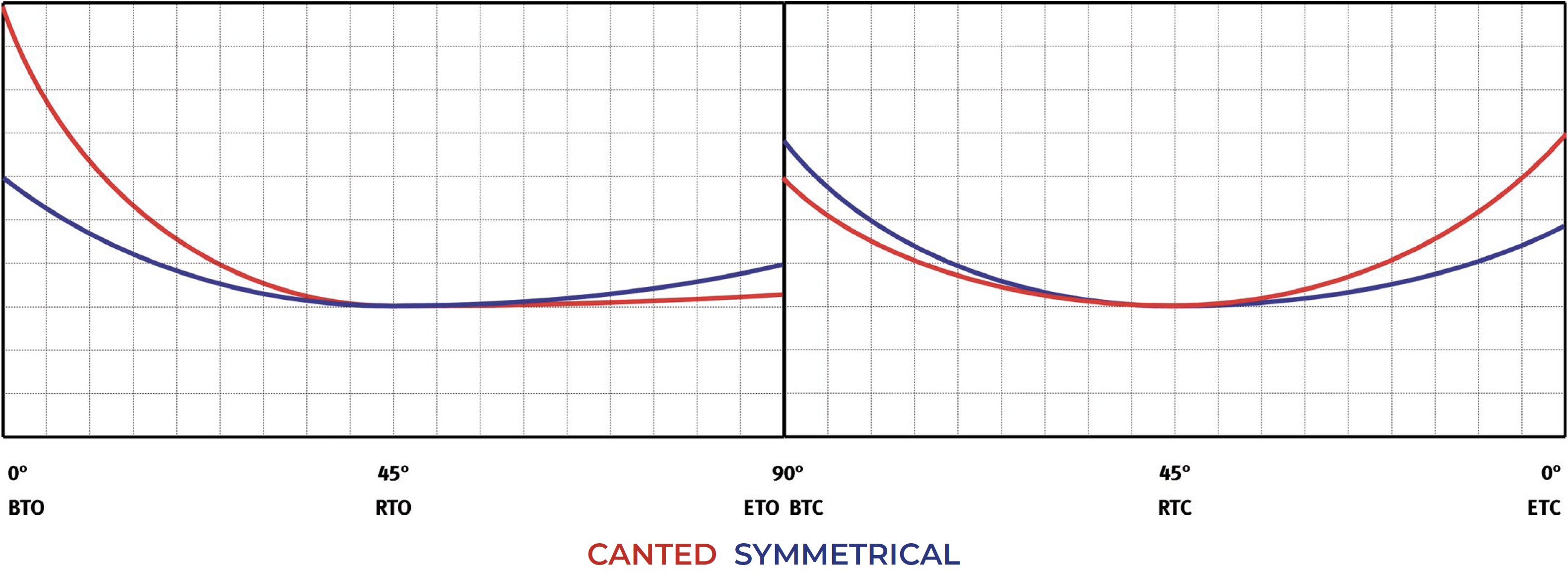

  • diagramme und anlaufmomente
  • merkmale

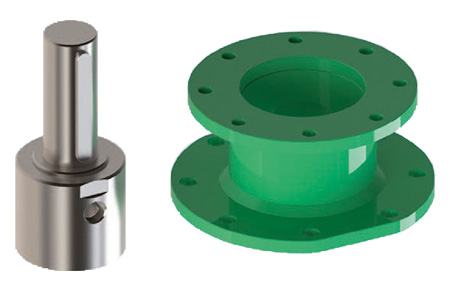

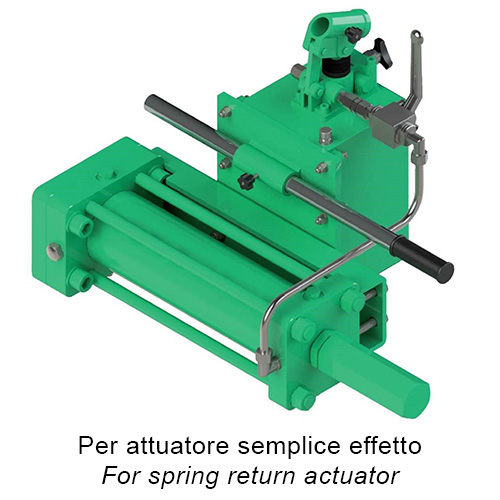

  • zubehör
  • dokumente

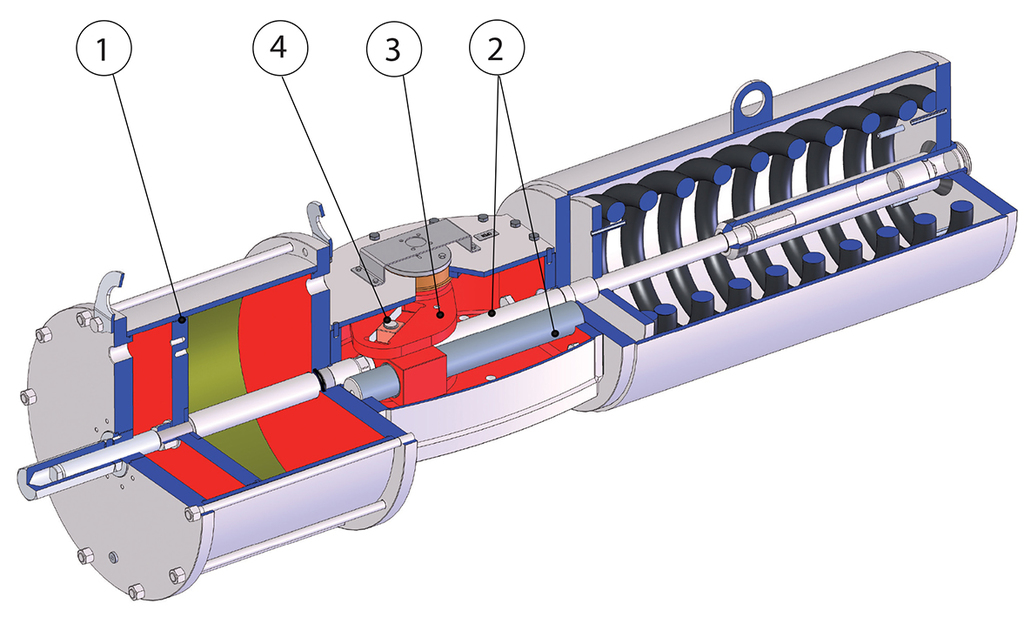

1 Gleitleisten aus graphitverstärktem PTFE
Weniger Reibung zwischen Kolben und Zylinder
Das Anhaften der Gleitleisten am Zylinder wird auch nach langen Standzeiten verhindert
Mindert den Stick-Slip-Effekt

2 Spindel und Führungsstange aus verchromtem Stahl mit einer Härte von ungefähr 200 HB
Höhere Korrosionsbeständigkeit
Weniger Reibung zwischen Spindel, Führungsstange und Gleitbuchsen und folglich weniger Verschleiß von relevanten Teilen

3 Umstellung des Bewegungsmechanismus von Linearhub auf Drehbewegung unabhängig vom Steuermedium des Antriebs
Betrieb mit technischen Gasen möglich
Explosionsgefährdete Umgebungen vermeiden

4 Kurbelschleife mit Rollwiderstand (Umwandlung der linearen in eine Drehbewegung mittels System ohne Zahnräder)
Geringerer Verschleiß der Teile durch den geringeren Widerstand zwischen Kolben und Welle
Verbessertes Drehmoment beim Öffnen und Schließen

Buchsen aus Bronze
Gewährleisten geringeren Verschleiß im Vergleich zu Buchsen aus anderem Material

ATEX Compliance
Ermöglicht die Installation in explosionsgefährdeten Umgebungen

Zertifikat bis SIL 3
Hohe Funktionssicherheit

Technische Daten:
Nenndrehmomente: von 2000 Nm bis etwa 30.000 Nm
Flansche nach DIN / ISO 5211, DIN 3337
Rotation angle: 100° (-5°, +95°).
Double adjusting +5° and -5° for each end position (0° and 90°).
Versorgungsdruck: von 3 bar bis 8,5 bar (Drehmomente siehe Tabellen)
Bei der doppeltwirkenden Ausführung ist das Drehmoment direkt proportional zum Versorgungsdruck des Antriebs
Bei der einfachwirkenden Ausführung hängt das Rückstellmoment (keine Versorgung im Antrieb) nur von der Wirkung der Feder ab und ist unabhängig vom Versorgungsdruck

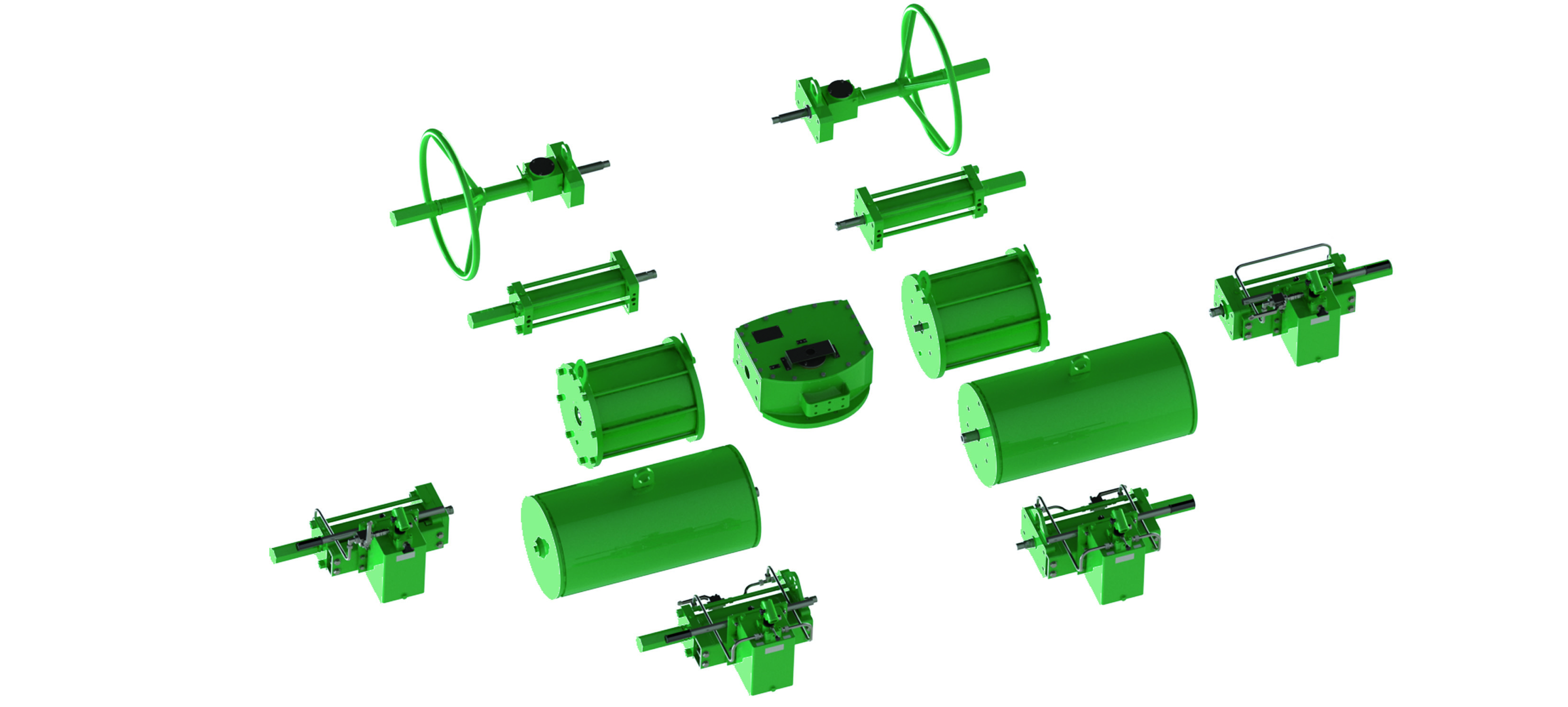

Erhältliche Ausführungen: Doppeltwirkend, normal geschlossen (NC), normal offen (NO)

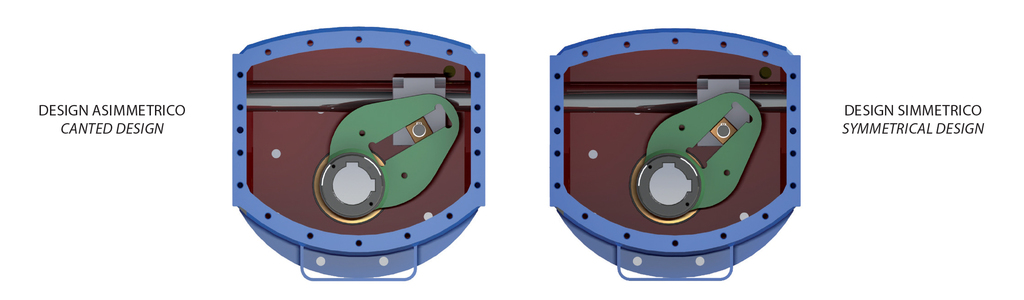

Konfigurationen des Zentralgehäuses: Symmetrische Kurbelschleife (symmetrical) oder asymmetrische Kurbelschleife (canted)

Betriebsbedingungen:

Temperaturbereich: Standardausführung: -20°C bis + 80°C (Dichtungsmaterial: NBR)
Versorgungsmedien: Gefilterte, nicht unbedingt geschmierte Druckluft; inerte Gase, technische Gase
Bei Temperaturen unter 0°C bitte trockene Luft verwenden
Verwenden Sie zum Schmieren kein reinigendes Öl, sondern solches, das mit den internen Materialien der verwendeten Version des Stellantriebs kompatibel ist

Konstruktionsnormen:
Ausführung nach EN 15714-3, ISO 5211, ISO 12490

PosBeschreibungWerkstoffe
1ZentralgehäuseCarbonstahl
2GabelCarbonstahl
3Gabelbuchse Bronze
4FührungsstangeStahllegierung (verchromt)
5GleitbuchseBronze
6Entlüftungsventil (nicht abgebildet)Messing
7FührungssperreCarbonstahl
8GewindebolzenStahllegierung
9KolbenstangeStahllegierung (verchromt)
10Kolben Carbonstahl
11FlanschCarbonstahl
12O-RingNitrilic rubber
13ZylinderCarbonstahl (vernickelt)
14Buchse KolbenstangeStahl + Bronze + PTFE
15DichtungNBR + Polyurethan
16O-RingNitrilic rubber
17GleitringPTFE + Graphit
18O-RingNitrilic rubber
19Justierschraube  Stahllegierung
20JustierschraubeStahllegierung
21FederStahllegierung
22FederpaketCarbonstahl
23Buchse  Stahl + Bronze + PTFE
24Buchse  Stahl + Bronze + PTFE
25Schaft FederpaketStahllegierung (verchromt)

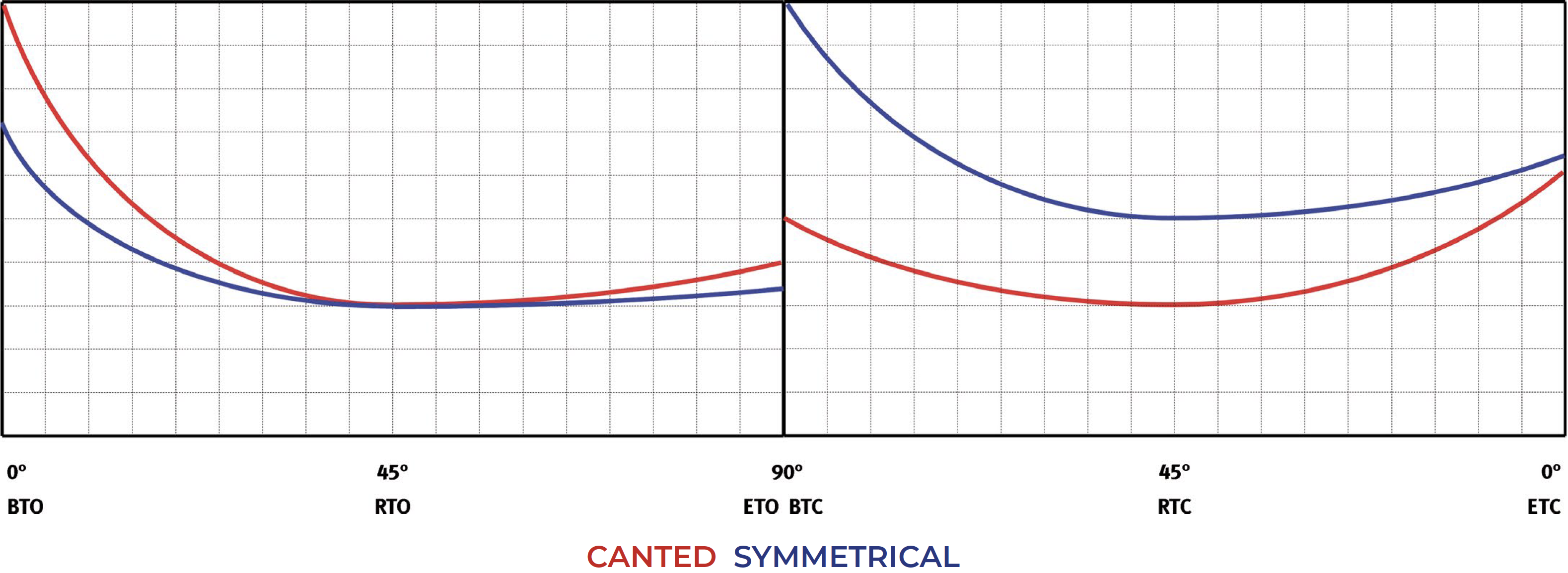

Einfachwirkend normal geschlossen – Tabelle Anlaufmomente (Drehmomente)

ModellnummerMaximales Drehmoment Nm
3 BAR ASYMMETRISCH - normal geschlossen
Abtriebsdrehmoment (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.000





GHDP-085C-335A-C29.000





GHDP-085C-385A-C29.0003.8021.0011.1142.0001.2052.324
GHDP-085C-435A-C29.0005.5631.7042.0901.9961.2022.315
GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.000





GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.000





GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.000





GHDP-100C-435A-C118.000





GHDP-100C-485A-C118.000





GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.000





GHDP-100C-585A-C218.00010.1032.2112.2196.4173.8117.099
GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.000





GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.000





GHDP-130C-485A-C132.000





GHDP-130C-535A-C132.000





GHDP-130C-585A-C132.00012.4193.0553.2588.1385.01710.196
GHDP-130C-635A-C132.00016.5884.7455.5678.1655.03710.251
GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.000





GHDP-130C-535A-C232.000





GHDP-130C-585A-C232.000





GHDP-130C-635A-C232.00015.0833.3293.35210.1096.09211.756
GHDP-130C-485A-C532.000





GHDP-130C-535A-C532.000





GHDP-130C-585A-C532.000





GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.00017.0754.4574.93110.8596.78014.156
GHDP-130C-735A-C532.00021.8376.3707.56910.8426.76714.121
GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000
